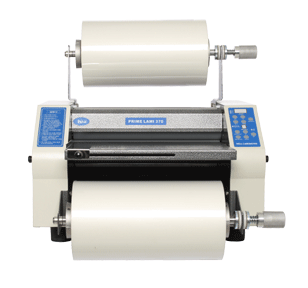

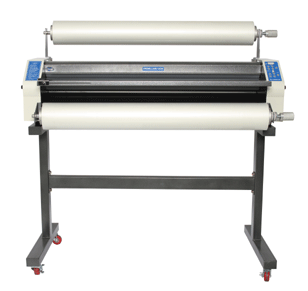

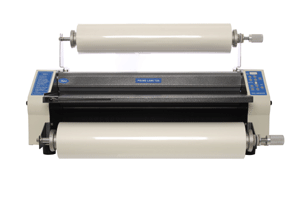

| DIGITAL ROLL LAMINATOR P-370D/ P-720D/ P-1020D/ P-1200D |
|
|
|
|
|
| |
| 2. |
Highly durable thick silicon roller and metal case |
|
| 4. |
Forward, reverse switch |
|
| 5. |
Current temperature check |
|
| 6. |
Auto power off & Power saving
* In case of 2 hours' no use, power of the heater is off automatically.
|
|
| 7. |
Easy operation
* Alarm function when it is ready to work for preheating.
|
|
| 8. |
Easy roller cleaning in the structure.
|
|
| 9. |
Hot roller diameter : 55mm
Press roller diameter : 45mm, 35mm |
|
| 10. |
Hot or Cold lamination is available
|
|
| 11. |
Foam board mounting is available.
|
|
| 12. |
A set of rewinding device for the back paper will be installed with the buyer’s request & charge if necessary.(PRIME LAMI-1020D/1200D)
|
|
| 6. |
예열 완료 시 알람(LED 적색에서 녹색으로 전환)
|
|
| 7. |
자동전원차단 및 절전 기능
- 2시간 미사용 시 자동 Heater off 등
|
|
| 9. |
Hot roller 직경 : 55mm |
Press roller 직경 : 45mm, 35mm |
|
|
|
|
|
| |
| |
▣ SPECIFICATIONS
| CLASSFICATION |
370D |
720D |
1020D |
1200D |
| DIMENSION (mm) |
535X280X355 |
885X280X355 |
1185X280X355 |
1370X280X355 |
| WORKING WIDTH (mm) |
350 |
680 |
980 |
1160 |
| LAMINATING THICKNESS (max mm) |
2.5 |
2.5 |
2.5 |
2.5 |
| LAMINATING SPEED (m/min) |
4 |
4 |
4 |
4 |
| POWER (AC V) |
220-240 |
220-240 |
220-240 |
220-240 |
| POWER CONSUMPTION (W) |
900 |
1700 |
1700 |
2000 |
| WEIGHT (kg) |
38 |
68 |
78 |
85 |
|
|
| |

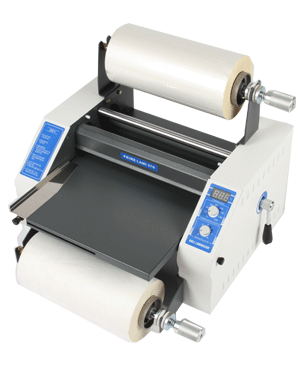

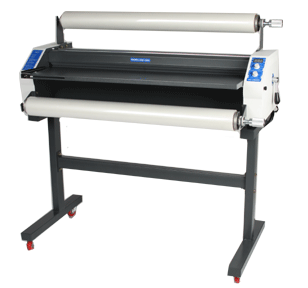

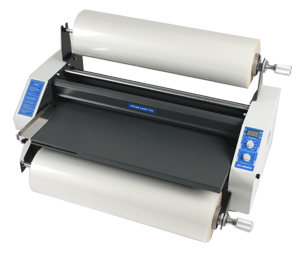

| ANALOG ROLL LAMINATOR P-370/ P-720/ P-1020/ P-1200 |
|
|
|
|
|
| |
| 2. |
Highly durable thick silicon roller and metal case |
|
| 4. |
Forward switch
( Reverse switch is available if necessary) |
|
| 5. |
Easy operation
* LED twinkling function when it is ready to work |
|
| 7. |
Hot roller diameter : 55mm |
|
| 8. |
Press roller diameter : 45mm |
|
| 9. |
Hot or Cold lamination is available |
|
| 10. |
Form board mounting is available |
|
| 11. |
A set of rewinding device for the back paper will be installed with the buyer’s request & charge if necessary.(PRIME LAMI-1020/1200)
|
|
|
|
|
|
| |
| |
▣ SPECIFICATIONS
| CLASSFICATION |
370 |
720 |
1020 |
1200 |
| DIMENSION (mm) |
535X280X355 |
885X280X355 |
1185X280X355 |
1370X280X355 |
| WORKING WIDTH (mm) |
350 |
680 |
980 |
1160 |
| LAMINATING THICKNESS (max mm) |
2.5 |
2.5 |
2.5 |
2.5 |
| LAMINATING SPEED (m/min) |
4 |
4 |
4 |
4 |
| POWER (AC V) |
220-240 |
220-240 |
220-240 |
220-240 |
| POWER CONSUMPTION (W) |
900 |
1700 |
1700 |
2000 |
| WEIGHT (kg) |
38 |
68 |
78 |
85 |
|
|
| |
| |
| |
|
|
| |
|
|
|
| |
| |
|
|
 |
| |
 |
 |
|
|
 |
|
|
|
